DEFENDER50
The Defender 50 is a highly robust system that has been crash tested to 50 mph and the only system in its class to be tested with top fence panels. Manufactured in UV stabilised polymer, the barrier offers a volume of up to 400 litres.
Features
Crash tested to 50 mph.
Barriers secured together with two metals plates and a steel tube.
Entire system does not need to be disassembled to install metal compound gates.
Sump plug for easy emptying.
Compatible & crash tested with the DoubleTop range.
Corporate branding can be embossed.
48 pieces make up 100 metre run.
Easy fill from the top and cover with fill cap.
Manufactured in UV Stable polymer.
Fork lift entry on the base.
138° angular movement.
Spec Sheet:

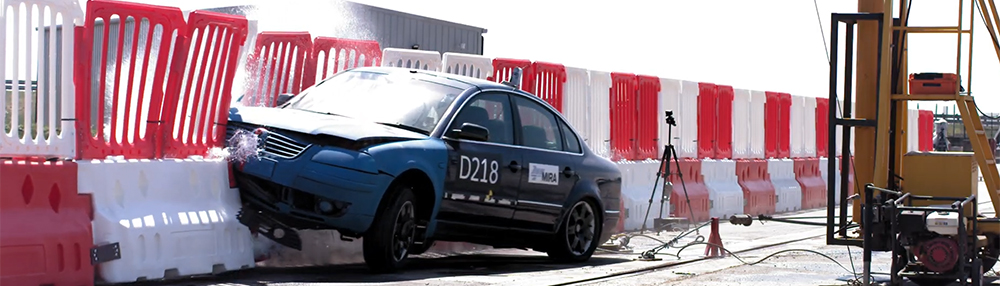

The DEFENDER50 barrier system with integrated fencing was subjected to controlled crash criteria set out in BS EN 1317 Containment level N1.
- Impact angles within tolerance - 20° impact.
- Vehicle did not breach system.
- Vehicle stayed on correct side & within CEN box.
- Vehicle did not roll.
- System did not penetrate vehicle.
- Impact severity level rating - A.
- Impact speed - 81.3 kmh / 50.51 mph.
Filling Cap
Fixing Plate
Hex 8 Bolts
Sump Plug
Steel Tube
Mini-DoubleTop
DoubleTop
