Melba Swintex | MasterID Barrier

MasterID

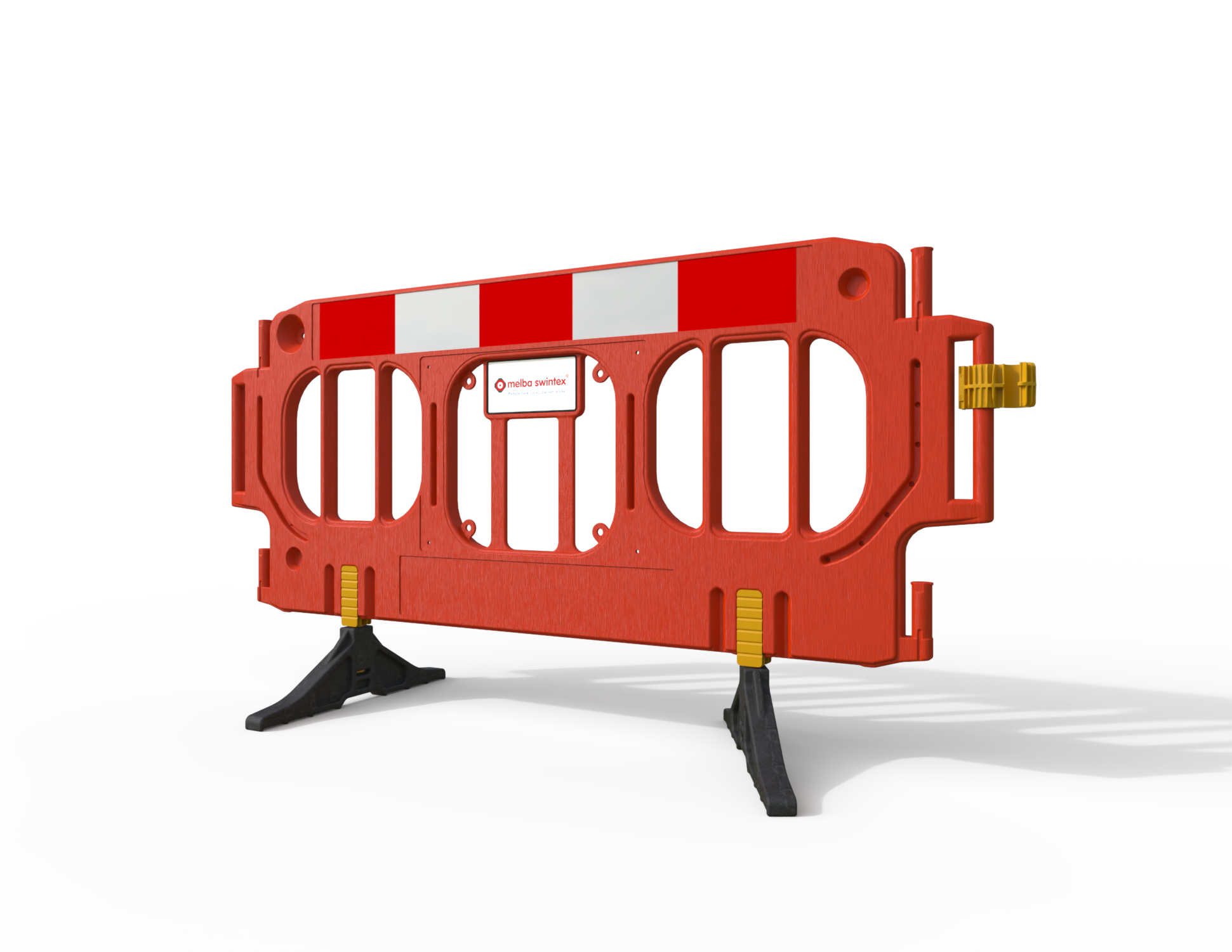

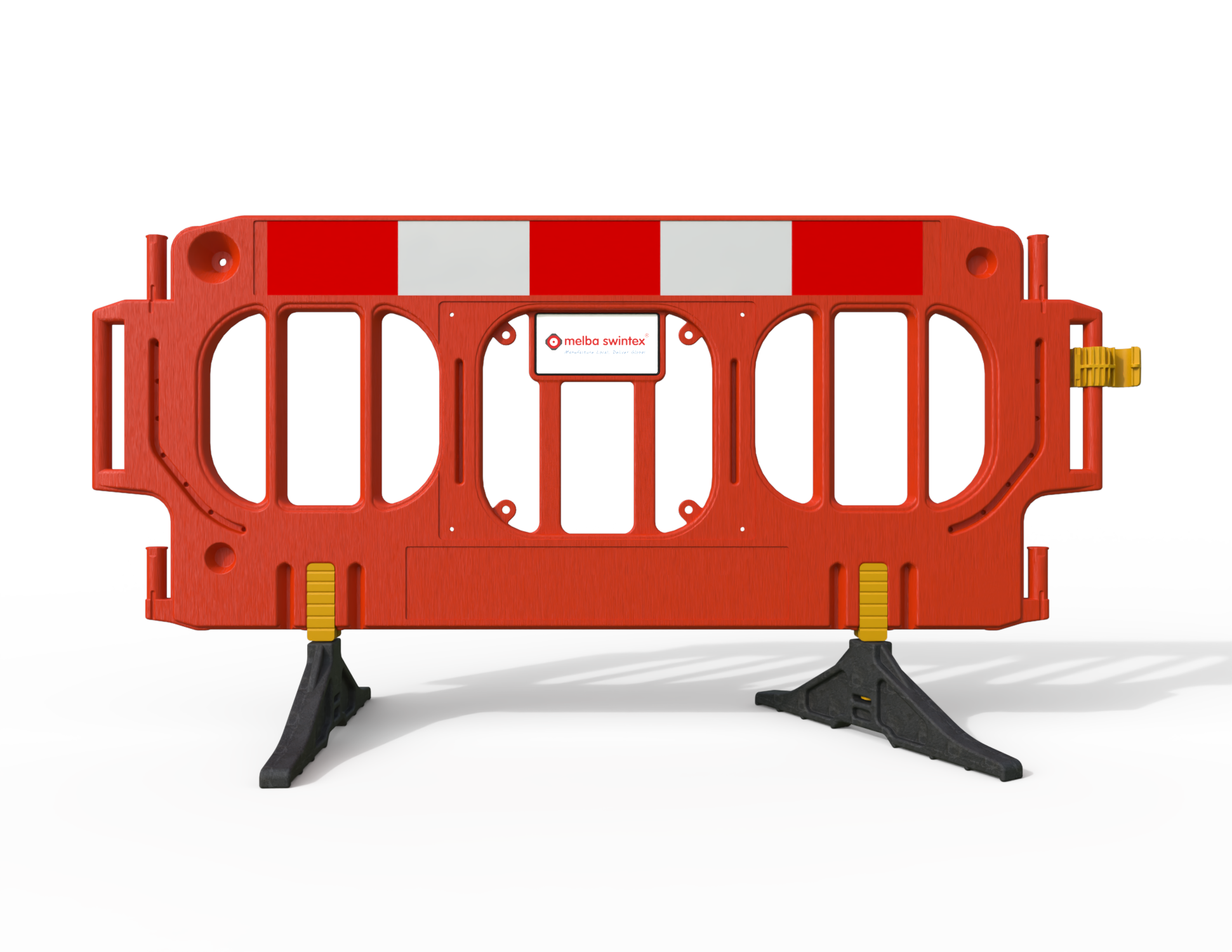

A premium temporary solution engineered for durability, safety, and refined presentation in high-traffic environments. Featuring a sleek integrated ID plate, it allows seamless corporate branding, wayfinding, or messaging without compromising the barrier’s clean, professional aesthetic.

Features

Free standing with 360° swivel feet.

Free from screws and rivets.

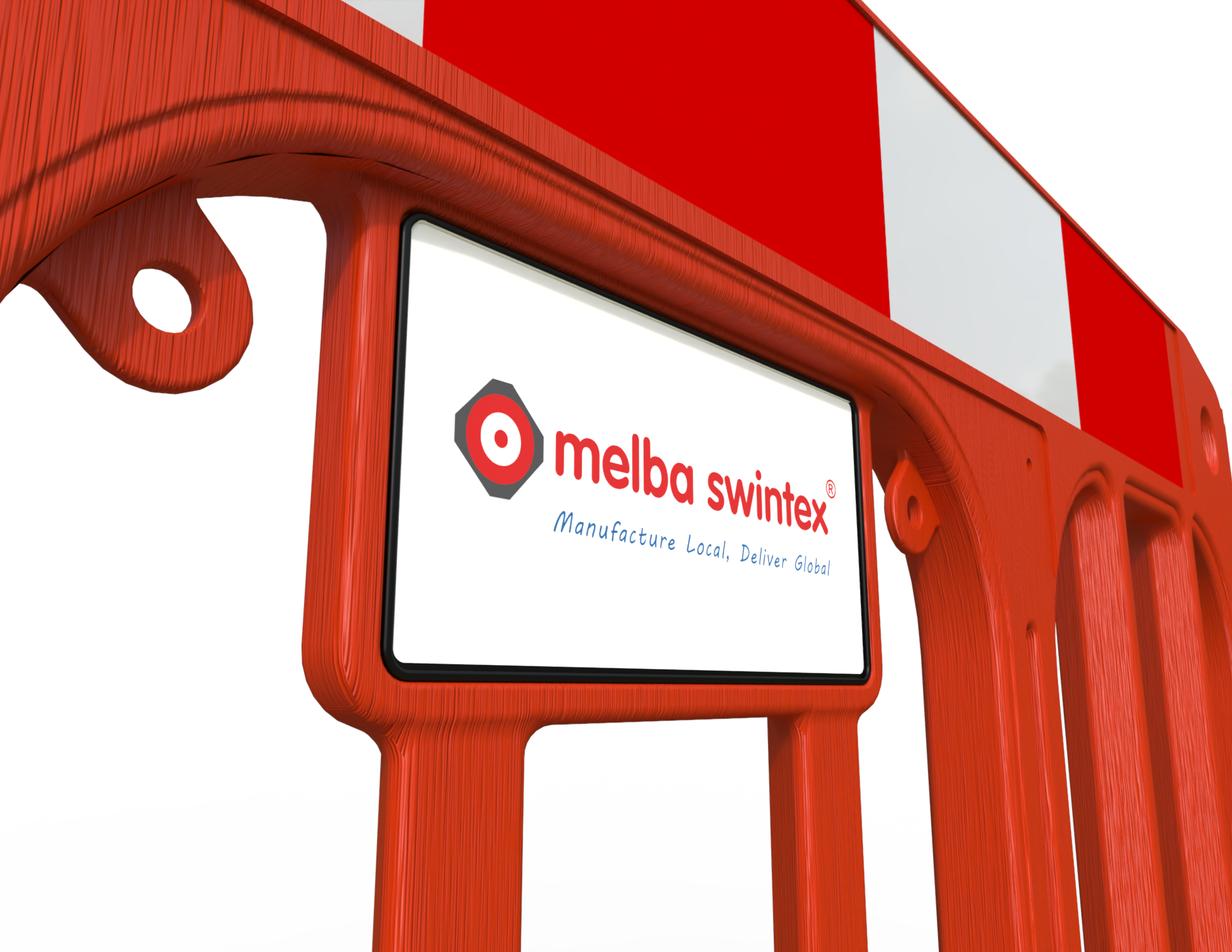

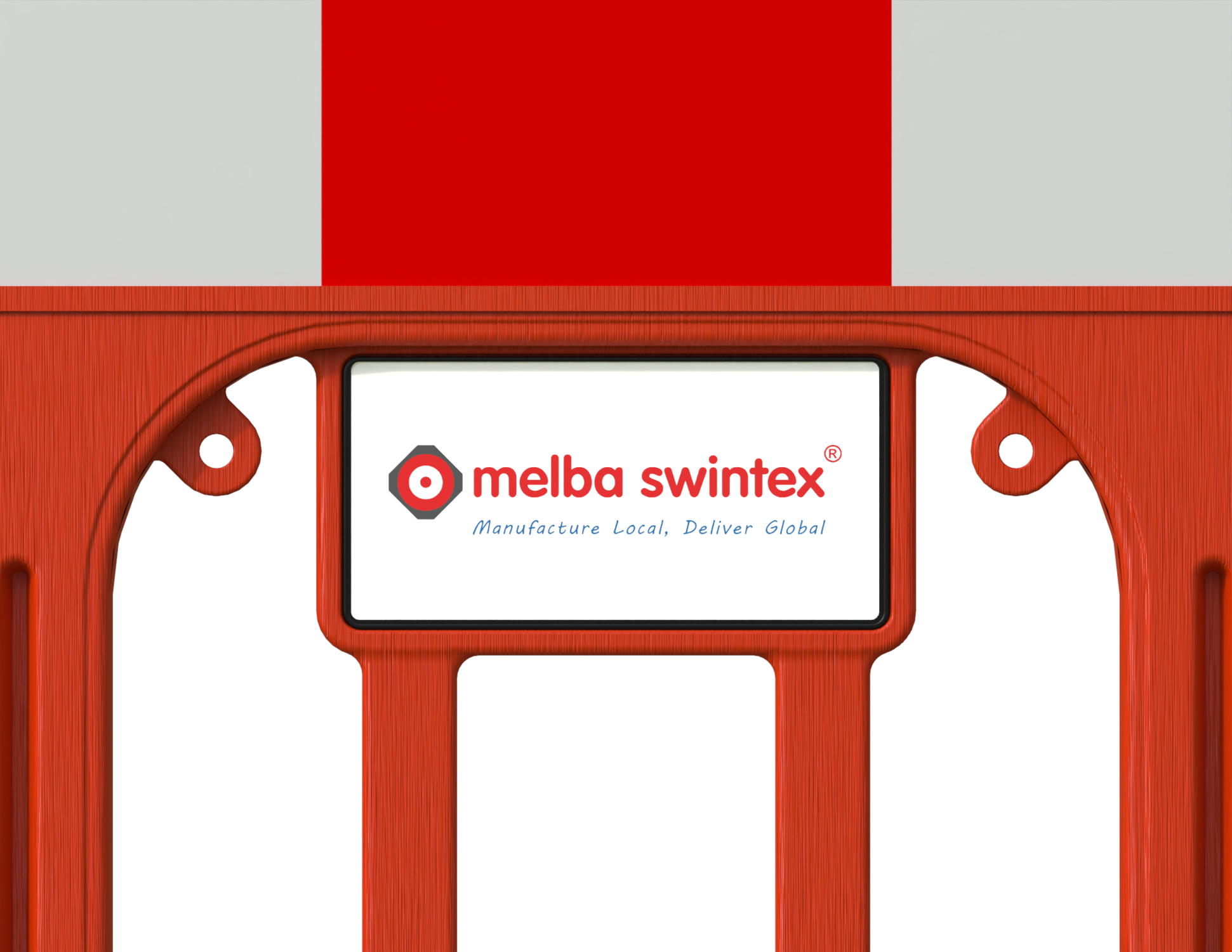

Highly robust brand plate emphasises brand identity.

Feet can be coloured to suit.

Barrier to barrier connection is quick and easy for use on uneven ground.

Information sign can be attached.

Corporate colours & branding possible.

Manufactured from virgin HDPE.

Bottom reflective strip if requested.

Transport

Pallet Quantity:

Pallet Size (mm):

2100 x 1200 x 2200

Pallet Spaces:

Pallet Weight (kg):

420

Standards

Conforms to requirements of BSEN8442

Reflectivity requirements of BSEN12899-1

Chapter 8 - The Traffic Signs Manual

Safety at Street Works & Road Works
– A Code of Practice.

Traffic Signs Regulations & General Directions

Spec Sheet:

Download Spec Sheet

For More Information Get in Touch

Wind Resistance

All temporary traffic barriers must be able to withstand three different classes of wind speeds with the use of a ballast. The standard BS 8442:2022 states the three classes as the following:

Class A: 26.3 m/s (58 mph)
Class B: 17.6 m/s (39 mph)
Class C: 8.7 m/s (19 mph)

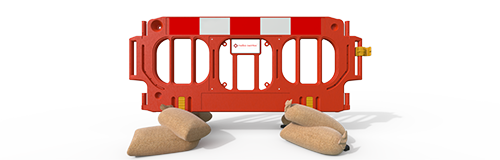

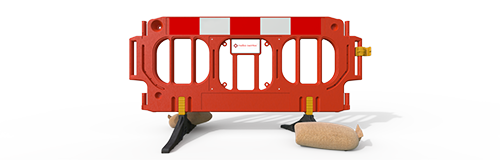

The Master Barrier system was tested under strict conditions at the Full Scale Wind Tunnel at Mira to determine at which wind speeds the barrier can withstand. Below are the results and guides as to the recommended ballast weight for each Wind Class:

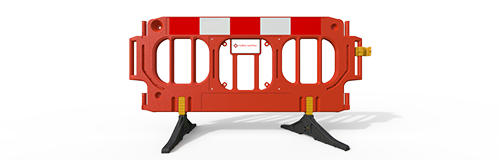

Class C
Withstood up to 19.1 mph.
Recommended Ballast Weight: 0 kg
