Melba Swintex | Vision Pedestrian Barrier

Vision

The Vision Barrier can connect to either itself or other existing barriers using the various attachment methods on offer. Reflective strips on the spindles allow increased visibility.

Features

Manufactured from virgin HDPE.

600 x 450 sign facility.

Highly reflective sleeves (360°) on two vertical spindles for improved visibility.

Q-Clip support for barrier to barrier connection.

Hook & Eye connection to other barriers.

Compatible with Master & Gate barriers.

Customer identification may be embossed into Barrier body.

Available in other colours upon request.

Transport

Pallet Quantity:

Pallet Size (mm):

2000 x 1200 x 2150

Pallet Spaces:

Pallet Weight (kg):

420

Standards

Conforms to requirements of BSEN8442

Reflectivity requirements of BSEN12899-1

Chapter 8 - The Traffic Signs Manual

Safety at Street Works & Road Works
– A Code of Practice.

Traffic Signs Regulations & General Directions

Spec Sheet:

Download Spec Sheet

Wind Resistance PDF

For More Information Get in Touch

Customisation

Foot

Anti Trip

Full Foot

Tuff Foot

Tuff-AT Foot

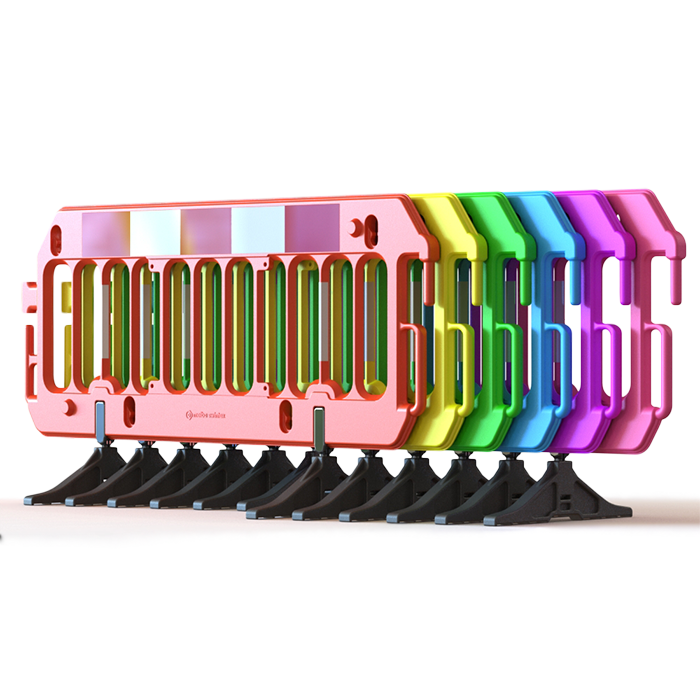

Colour

Barrier

Foot

Sign

Wind Resistance

All temporary traffic barriers must be able to withstand three different classes of wind speeds with the use of a ballast. The standard BS 8442:2022 states the three classes as the following:

Class A: 26.3 m/s (58 mph)
Class B: 17.6 m/s (39 mph)
Class C: 8.7 m/s (19 mph)

The Vision Barrier system was tested under strict conditions at the Full Scale Wind Tunnel at Mira to determine at which wind speeds the barrier can withstand. Below are the results and guides as to the recommended ballast weight for each Wind Class:

Class C
Withstood up to 19.8 mph.
Recommended Ballast Weight: 0 kg
